Pneumatic Three Piece Flanged Ball Valve
| Body Material | |
| Class | |
| Actuation Type | |
| Size |
Pneumatic Three Piece Flanged Ball Valve
Actuation Type: Spring Return, Double Acting
Body material: CF8M, Carbon Steel
Ball Material: Stainless Steel, Carbon Steel
Sealing Material: PTFE
End Connection: Threaded, Buttweld(BW), Socketweld, Flanged
Nominal Size: 1/2? t0 8?
Nominal Pressure: Class150, PN16
Operation: Lever Operated. Gear Operated, Electric Actuated, Pneumatic Actuated

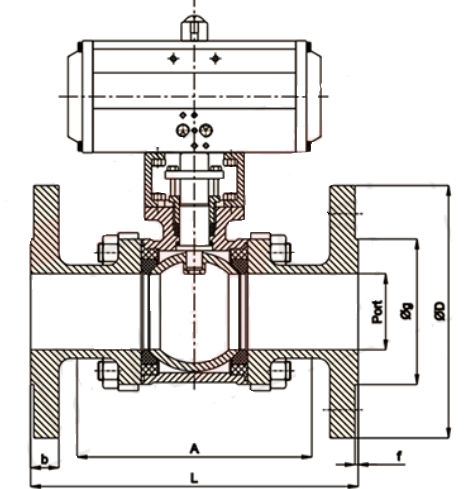

Dimensions
| DN | Online dimension | Connecting Dimension | ||||||||||
| mm | in | L | L0 | L1 | L2 | H | D | D1 | D2 | C | f | n-?d |
| 15 | 1/2 | 150 | 72 | 178 | 121 | 204 | 95 | 65 | 46 | 14 | 2 | 4-?14 |
| 20 | 3/4 | 160 | 80 | 178 | 121 | 240 | 105 | 75 | 56 | 16 | 2 | 4-?14 |
| 25 | 1 | 180 | 90 | 178 | 121 | 257 | 115 | 85 | 65 | 16 | 2 | 4-?14 |
| 32 | 1 1/4 | 200 | 100 | 178 | 121 | 277 | 140 | 100 | 76 | 18 | 3 | 4-?18 |
| 40 | 1 1/2 | 220 | 110 | 210 | 131 | 292 | 150 | 110 | 84 | 18 | 3 | 4-?18 |
| 50 | 2 | 240 | 120 | 210 | 131 | 325 | 165 | 125 | 99 | 20 | 3 | 4-?18 |
| 62 | 2 1/2 | 260 | 130 | 210 | 131 | 357 | 185 | 145 | 118 | 20 | 3 | 4-?18 |
| 80 | 3 | 280 | 140 | 309 | 160 | 368 | 200 | 160 | 132 | 20 | 3 | 8-?18 |
| 100 | 4 | 320 | 160 | 309 | 160 | 410 | 220 | 180 | 156 | 22 | 3 | 8-?18 |
| 125 | 5 | 380 | 190 | 309 | 160 | 470 | 250 | 210 | 184 | 22 | 3 | 8-?18 |
| 150 | 6 | 440 | 220 | 309 | 177 | 556 | 285 | 240 | 211 | 24 | 3 | 8-?22 |
| 200 | 8 | 550 | 260 | 309 | 177 | 648 | 340 | 295 | 266 | 24 | 3 | 8-?22 |
