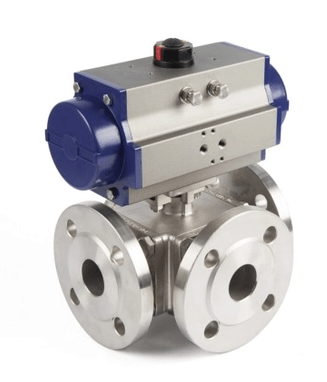

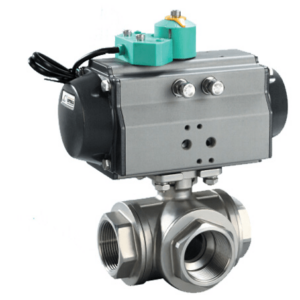

Pneumatic Three Way Flanged Ball Valve

Body material: CF8M

Stem: SS304

Connection type: Screwed, Buttweld, Threaded or Welded

Nominal Diameter: DN15 to DN100, Class150 to Class300

Nominal Pressure: PN1.6 to PN6.3MPa

Structure?type:?Floating?ball?core?3?way?T?type,?3?way?L?type

Stem?material:?304

Design and Manufacture: API 6D

Face to Face Dimension: ASME B16.10

Flange End Dimension: ASME B16.5

Inspection and Test: API598, API6D

Dimensions? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?Unit: mm

Size		PN	?D	?d	?d1	?d2	L	n	?h	T	f	H	SR		DA
DN	in	PN	?D	?d	?d1	?d2	L	n	?h	T	f	H	H1	L1	H1	L1
15	1/2	10-40	15	95	65	45	155	4	14	16	2	64.5	181.5	207	165	162
20	3/4	?10-40	20	105	75	58	165	4	14	18	2	64.5	193	237.5	181.5	207
25	1	?10-40	25	115	85	68	181	4	14	18	2	67.5	196	237.5	184.5	207
32	1 1/4	?10-40	32	140	100	78	190	4	18	18	2	78.5	207	237.5	195.5	207
40	1 1/2	?10-40	40	150	110	88	212	4	18	18	3	85	226.5	271.5	213.5	237.5
50	2	?10-40	50	165	125	102	232	4	18	20	3	93	264.5	328	234.5	271.5
65	2 1/2	?10-40	65	185	145	122	290	4	18	22	3	121	304.5	366	292.5	328
80	3	10-16	80	200	160	138	310	8	18	20	3	153	359	428	336.5	366
100	4	10-16	100	220	180	158	352	8	18	22	3	170.5	392.5	430	376.5	428
