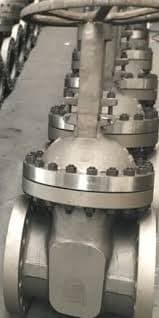

Standard rising stem carbon steel gate valve with visible stem position indication for industrial isolation applications.
Product Overview
Pressure Rating
ANSI Class 150-2500 (PN16-PN420): Class 150 (275 PSI), Class 300 (720 PSI), Class 600 (1440 PSI), Class 900 (2160 PSI), Class 1500 (3600 PSI), Class 2500 (6170 PSI). Rising stem provides visual position indication
Temperature Range
Service Temperature: -29°C to 454°C (-20°F to 850°F) for carbon steel body. High temperature service up to 593°C (1100°F) for alloy steel construction
Material Construction
Body: Carbon steel ASTM A216 WCB forged construction with integral seat design
Gate: 13% chrome stainless steel with hard-faced sealing surfaces
Stem: 410 stainless steel rising design with position indication
Bonnet: Carbon steel bolted or pressure-seal construction
Seat Ring: 13% chrome renewable design
Packing: Braided PTFE or graphite
Connection Type
Flanged RF (ANSI B16.5), Socket Weld, Threaded NPT, Butt Weld
Looking for more details?
View complete technical specifications in the Specifications tab, check out Features and Applications, or download product documentation from the Downloads tab.
$680.00
