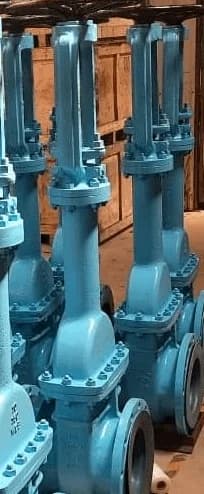

Durable rising stem ductile iron gate valve with superior strength for high-pressure water distribution applications.
Product Overview
Pressure Rating
Working Pressure: ANSI Class 125-250 (PN10-PN40): Class 125 (200 PSI), Class 150 (275 PSI), Class 250 (580 PSI). Suitable for water and neutral liquids
Temperature Range
Water Temperature: -10°C to 70°C (14°F to 158°F) for EPDM seals. Extended temperature range with Viton seals up to 150°C (302°F)
Material Construction
Body: Ductile iron ASTM A536 Grade 65-45-12 with fusion-bonded epoxy coating
Gate: Ductile iron with EPDM or rubber coating
Stem: 316 stainless steel rising design with position indication
Bonnet: Ductile iron with O-ring seal
Packing: EPDM or PTFE with adjustable gland
Hardware: 316 stainless steel
Connection Type
Flanged RF (EN 1092-1), Flanged FF (ANSI B16.1), Mechanical joint
Looking for more details?
View complete technical specifications in the Specifications tab, check out Features and Applications, or download product documentation from the Downloads tab.
$620.00
