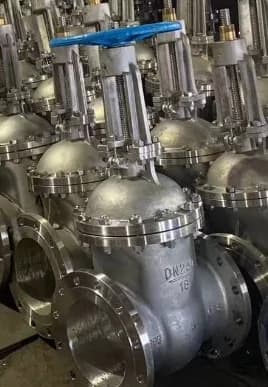

Corrosion-resistant rising stem stainless steel gate valve for chemical and food-grade applications.
Product Overview
Pressure Rating
ANSI Class 150-1500 (PN16-PN250): Class 150 (275 PSI), Class 300 (720 PSI), Class 600 (1440 PSI), Class 900 (2160 PSI), Class 1500 (3600 PSI). Rising stem provides visual position indication
Temperature Range
Service Temperature: -196°C to 454°C (-320°F to 850°F) for 316 stainless steel. Cryogenic service down to -253°C (-423°F) for LNG applications
Material Construction
Body: 316 stainless steel ASTM A351 CF8M with integral seat design
Gate: 316 stainless steel with precision ground sealing surfaces
Stem: 316 stainless steel rising design with position indication
Bonnet: 316 SST bolted or pressure-seal construction
Packing: PTFE or graphite with lantern ring
Handwheel: Stainless steel
Connection Type
Flanged RF (ANSI B16.5), Socket Weld, Threaded NPT, Tri-Clamp sanitary
Looking for more details?
View complete technical specifications in the Specifications tab, check out Features and Applications, or download product documentation from the Downloads tab.
$1,280.00
