Slurry Knife Gate Valve

Home > Knife Gate Valve
Image 915
Image 916
Image 917

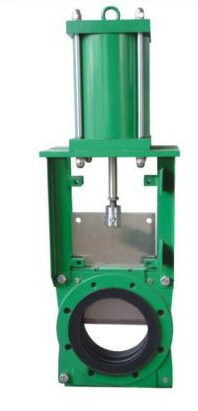

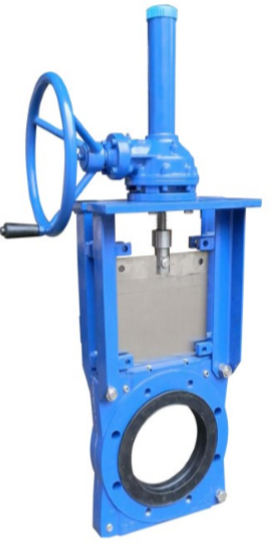

Slurry Knife Gate Valve

Body Material
Class
Size

Slurry Knife Gate Valve

Body: Ductile Iron, Carbon Steel

Stem: F304, F316

Gate: F304, F316

Stem Packing: PTFE, Graphite

Nominal Diameter: DN50 to DN600

Nominal Pressure: Class150, PN6, PN10, PN16

End Connection: Wafer, Lug

Standard Compliance

MSS SP-81, T 8691

Face to Face Dimension: MSS SP-81

Pre-temperature Rating: ANSI B16.34

Flanged Dimension: ANSI B16.5, DIN2533, HG20592

Inspection and Test: API 598, T 9092

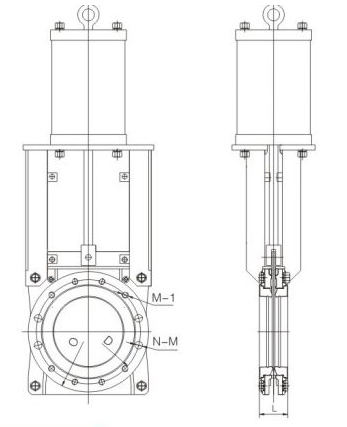

Dimensions? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?Unit: mm

DN L O D M-1
50 54 165 125 4-M16
65 54 185 145 4-M16
80 57 200 160 4-M16
100 57.5 220 180 4-M16
125 59 250 210 4-M16
150 65 285 240 4-M20
200 77 340 295 4-M20
250 78 395 350 8-M20
300 83 445 400 8-M20
350 84 505 460 12-M20
400 92 565 515 12-M24
450 103 615 565 16-M24
500 121 670 625 16-M24
600 121 780 725 12-M27
