Angle Globe Valve
| Body Material | |
| Connection Type | |
| Class | |
| Size |
Angle Globe Valve
Body: Carbon Steel, Cast Iron
Disc: A105+13Cr
Cover: A105
Stem: 2Cr13, F6a
Gasket: Stainless Steel+Graphite
Bolt: A193 B7
Nut: A194 2H
Bonnet: Carbon Steel, Cast Iron
Pin: Carbon Steel
Packing: Graphite
Gland: Cast Iron, Carbon Steel
Eyebolt: A183 B7
Nut: A194 2H
Stem Nut: Bronze
Handwheel: Cast Iron, Carbon Steel
Nominal Diameter: DN15 to DN250
Nominal Pressure: Class150 to Class1500, PN10 to PN64
End Connection: Flanged

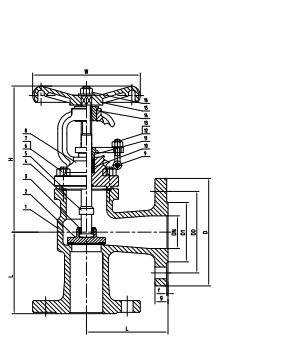

Dimension
PN16 Unit: mm
| DN | L | D | D0 | D1 | g | n-d | f | H | W |
| 15 | 90 | 95 | 65 | 47 | 14 | 4-14 | 2 | 260 | 80 |
| 20 | 95 | 105 | 75 | 58 | 16 | 4-14 | 2 | 280 | 80 |
| 25 | 100 | 115 | 85 | 68 | 16 | 4-14 | 2 | 290 | 100 |
| 32 | 105 | 140 | 100 | 78 | 18 | 4-18 | 2 | 315 | 120 |
| 40 | 115 | 150 | 110 | 88 | 18 | 4-18 | 3 | 345 | 120 |
| 50 | 125 | 165 | 125 | 102 | 20 | 4-18 | 3 | 370 | 140 |
| 65 | 145 | 185 | 145 | 122 | 20 | 4-18 | 3 | 415 | 160 |
| 80 | 155 | 200 | 160 | 138 | 22 | 8-18 | 3 | 480 | 240 |
| 100 | 175 | 220 | 180 | 158 | 24 | 8-18 | 3 | 545 | 240 |
| 125 | 200 | 250 | 210 | 188 | 26 | 8-18 | 3 | 620 | 280 |
| 150 | 225 | 285 | 240 | 212 | 26 | 8-23 | 3 | 700 | 320 |
| 200 | 275 | 340 | 295 | 268 | 30 | 12-23 | 3 | 845 | 360 |
| 250 | 325 | 405 | 355 | 320 | 32 | 12-27 | 3 | 1025 | 400 |
