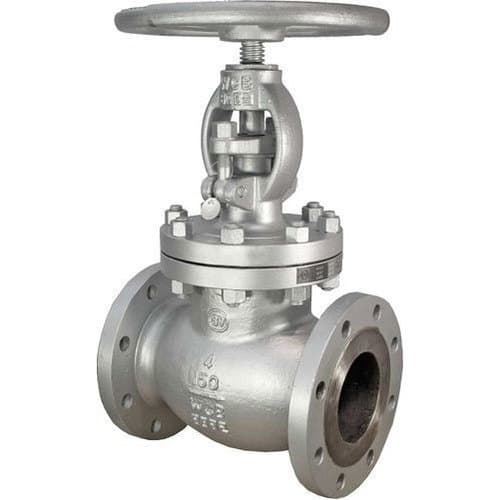

Premium Carbon Steel Globe Valve supplied by African Valve for industrial flow control. We stock comprehensive specifications in multiple materials and sizes, available across Africa with expert technical support and fast delivery.
Product Overview
Pressure Rating
Working Pressure: ANSI Class 150-600 (PN16-PN100): Class 150 (275 PSI), Class 300 (720 PSI), Class 600 (1440 PSI). Carbon steel construction for high pressure
Temperature Range
Service Temperature: -29°C to 454°C (-20°F to 850°F) for carbon steel body. High temperature service capability with alloy steel trim
Material Construction
Body: Carbon steel ASTM A216 WCB with bolted cover design
Disc: Carbon steel with hard-faced seating edge
Hinge: Stainless steel pin with bronze bushings
Cover: Carbon steel bolted with gasket seal
Seat: Integral hard-faced or renewable ring
Hardware: A193 B7/A194 2H stainless steel bolting
Gasket: Spiral wound or flat ring
Connection Type
Flanged (ANSI B16.5), Threaded (NPT/BSP)
Looking for more details?
View complete technical specifications in the Specifications tab, check out Features and Applications, or download product documentation from the Downloads tab.
$106.99
