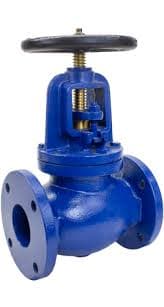

Reliable Cast Iron Globe Valve suitable for various industrial process applications
Product Overview
Pressure Rating
Working Pressure: ANSI Class 125-250 (PN10-PN25): Class 125 (200 PSI), Class 250 (415 PSI). Cast iron construction for moderate pressures
Temperature Range
Service Temperature: -7°C to 232°C (20°F to 450°F) for cast iron. Steam service up to 186°C (366°F) at reduced pressure. Water and oil applications
Material Construction
Body: Cast iron ASTM A126 Class B with screwed bonnet design
Disc: Bronze ASTM B62 with renewable design
Seat Ring: Bronze integral or renewable
Stem: Bronze or stainless steel with rising stem design
Bonnet: Cast iron screwed with packing gland
Packing: Braided or molded packing
Handwheel: Cast iron with steel insert
Connection Type
Flanged (ANSI B16.5), Threaded (NPT/BSP)
Looking for more details?
View complete technical specifications in the Specifications tab, check out Features and Applications, or download product documentation from the Downloads tab.
$63.99
