Eccentric Plug Valve

Body Material
Class
Size

Eccentric Plug Valve

Product?Name Cast Iron RF Type Eccentric Plug Valve with NBR/EPDM Seat
Valve?Type Eccentric Plug Valve
Size?Range DN15 to DN400, 1/2″ to 16″
Pressure?Range PN10 to PN16, CLASS150
Connection?End RF
Operation?Way Manual,?Pneumatic?Actuator,?Electric?Actuator
Packing?Method Standard?Export?worthy?duly?wooden?boxs

Construction is as follows:

Regular Port

Short, Regular or Venturi Pattern

Bolted Bonnet with spiral-would gasket

Anti-static Design & Blow-out proof stem

Soft Seated

Flanged Ends to ASME B16.5- Flanged Ends to ASME B16.5

Main Part & Materials:

Part?Names Part?Materials
CAST?IRON Ductile?Iron
Body/Bonnet A126?B GG25 FC20 A536 A395 GGG40 GGG50
Plug A126?B GG25 FC20 A536 A395 GGG40 GGG50
Seat NBR, EPDM
Packing Graphite, PTFE
Suitable?Medium Water,?Waste?Water?and?Sewage
Suitable?Temperature -29~120??C

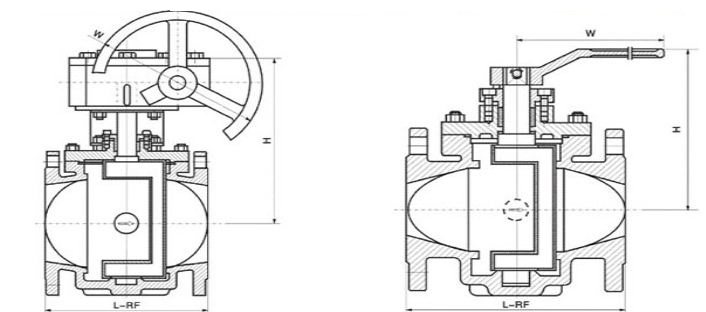

Dimensions:

Pressure 150LB
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4 5 6 8 10 12 14
L-RF 108 117 127 140 165 178 190 203 229 254 267 292 330 356 381
L-BW 152 178 203 216 229 267 305 330 356 381 394 457 533 610 686
H 59 63 75 95 107 142 152 178 252 272 342 398 495 580 625
W 400 400 500 500 600 600 820 820 300 300 320 320 350 380 380
(kg) Weight 10 12 14 17 19 21 29 33 48 75 98 125 171 230 370



Pressure 300LB
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4 5 6 8 10 12 14
L-RF 140 152 165 178 190 216 241 283 305 381 403 419 457 502 762
L-BW 152 178 203 216 229 267 305 330 356 381 457 521 559 635 762
H 59 63 75 95 107 142 152 178 252 272 342 398 495 580 625
W 400 400 500 600 600 820 1000 1000 300 300 320 320 350 380 380
(kg) Weight 12 14 16 19 19 24 31 36 61 86 130 190 255 380 560
