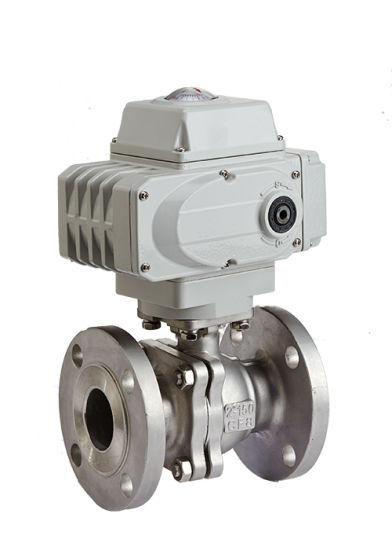

Electric Actuated 2 Piece Flanged Ball Valve
| No attributes available |
Electric Actuated 2 Piece Flanged Ball Valve
Body Material: Carbon Steel, CF8M
Ball Material: Stainless Steel
Seat: PTFE, RTFE, PPL
Nominal Diameter: DN15 to DN200
Nominal Pressure: PN1.0MPa to PN6.4MPa
End Connections: Flanged
Input and Output Signal: DC 4-30mA, DC 0-10V, DC 1-5V
Voltage: AC110-240V 380V 50/60Hz, DC 12V, DC 24V
Power Supply: 24V AC, 24V DC, 110V AC, 230V AC
Actuation Type: Electric Actuated
Dimensions Unit: mm

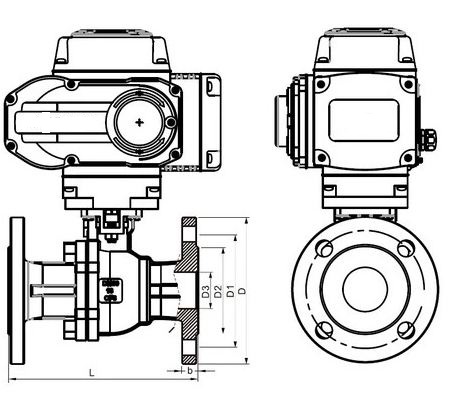

| DN | D3 | D2 | D1 | D | L | B | n-Φd |
| 15 | 15 | 34.9 | 60.3 | 90 | 108 | 11.5 | 4-Φ14 |
| 20 | 20 | 42.9 | 69.9 | 100 | 117 | 13 | 4-Φ14 |
| 25 | 25 | 50.8 | 79.4 | 110 | 127 | 14.5 | 4-Φ14 |
| 32 | 32 | 63.5 | 88.9 | 115 | 140 | 16 | 4-Φ18 |
| 40 | 40 | 73 | 98.4 | 125 | 165 | 17.5 | 4-Φ18 |
| 50 | 50 | 92.1 | 120.7 | 150 | 178 | 19.5 | 4-Φ18 |
| 65 | 65 | 104.8 | 139.7 | 180 | 190 | 22.5 | 4-Φ18 |
| 80 | 80 | 127 | 152.4 | 190 | 203 | 24 | 8-Φ18 |
| 100 | 100 | 157.2 | 190.5 | 230 | 229 | 24 | 8-Φ18 |
| 125 | 125 | 185.7 | 215.9 | 255 | 356 | 24 | 8-Φ18 |
| 150 | 150 | 215.9 | 241.3 | 280 | 394 | 25.5 | 8-Φ28 |
| 200 | 200 | 269.9 | 298.5 | 345 | 457 | 29 | 14-Φ23 |
