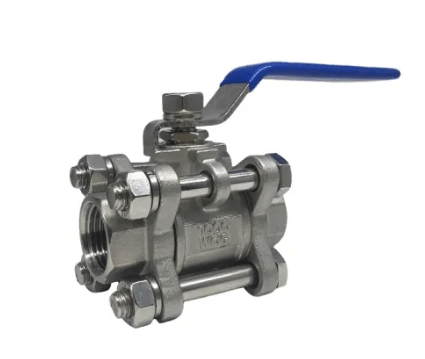

Hastelloy C276 3 Piece Screwed Ball Valve
| Body Material | |
| Class | |
| Size |
Hastelloy C276 3 Piece Screwed Ball Valve
Body: Hastelloy C276, Hastelloy G30, Hastelloy B, Hastelloy C22, Hastelloy C4
Bonnet: Hastelloy C276, Hastelloy G30, Hastelloy B, Hastelloy C22, Hastelloy C4
Seat: PTFE, RPTFE, PPL
Seal: PTFE, RPTFE, PPL
Nominal Size: 1/4″ to 4?
Nominal Pressure: 1000WOG, 2000PSI
Design and Manufacture Standard: API 6D, API 600
Face to Face Dimension: ANSI B16.10, ASME B16.10
Flange End Dimension: ANSI B16.5, ASME B16.5, DIN, JIS
Inspection and Test: API 598, API 6D
Dimensions
| SIZE | NPS | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 |
| DN | 6 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | |
| L | 65 | 65 | 75 | 85 | 95 | 115 | 125 | 150 | 175 | 210 | 260 | |
| D | 11.6 | 13 | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 80 | 100 | |
| H | 44 | 44 | 46 | 52 | 57 | 80 | 88 | 94 | 130 | 140 | 165 | |
| W | 100 | 100 | 100 | 124 | 124 | 154 | 154 | 154 | 260 | 260 | 284 | |
