Monel 400 2 Piece Flanged Ball Valve
| Body Material | |
| Class | |
| Connection Type | |
| Size |

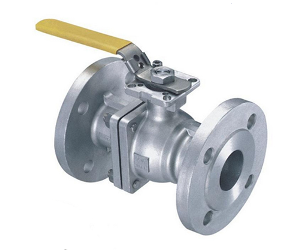

Monel 400 2 Piece Flanged Ball Valve
Body: Monel
Ball: Monel
End Cap: Monel
Seat: PTFE, RPTFE, PPL
Thrust Washer: PTFE, RPTFE, PPL
Stem Packing: PTFE, RPTFE, PPL
Gland Bush: SS304
Nominal Size: 2? to 8?
Nominal Pressure: Class150 to Class2500, PN1.6 to PN4.0
End Type: Flanged
Operation: Handwheel, Electric Actuated, Pneumatic Actuated
Design and Manufacture: API 6D
Face to Face Dimensions: ANSI B16.10
Flange end Dimension: ANSI B16.5
Butt Welded Dimensions: ANSI B16.25
Inspection and Test: API598
Dimensions
| NPS | in | 2 | 2 1/2 | 3 | 4 | 5 | 6 | 8 |
| d | mm | 51 | 64 | 76 | 102 | 127 | 152 | 203 |
| L(RF) | mm | 216 | 241 | 283 | 305 | 381 | 403 | 502 |
| d1 | mm | 92 | 105 | 127 | 157 | 186 | 216 | 270 |
| d2 | mm | 127 | 149 | 168.5 | 200 | 235 | 270 | 330 |
| D | mm | 165 | 190 | 210 | 254 | 279 | 318 | 381 |
| b | mm | 23 | 26 | 29 | 32 | 35 | 37 | 42 |
| n-?d | mm | 8-19 | 8-22 | 8-22 | 8-22 | 8-22 | 12-22 | 12-25 |
| H | mm | 140 | 160 | 180 | 208 | 220 | 290 | 300 |
| W | mm | 200 | 290 | 290 | 360 | 600 | 800 | 1000 |
