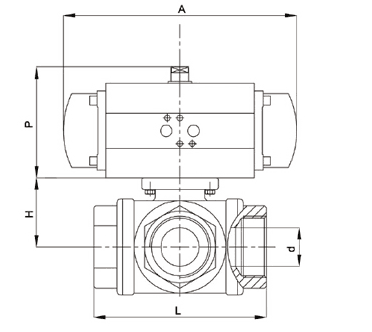

Versatile pneumatic 3-way ball valve with T-port or L-port configuration for automated flow diverting and mixing applications.
Product Overview
Pressure Rating
Body Rating: ANSI Class 150-600 (PN16-PN100): Class 150 (275 PSI), Class 300 (720 PSI), Class 600 (1440 PSI). Actuator: 15-100 PSI air supply with spring return fail-safe
Temperature Range
Service Temperature: -29°C to 454°C (-20°F to 850°F) for carbon steel body. High temperature service up to 538°C (1000°F) with alloy steel construction
Material Construction
Body: Carbon steel ASTM A216 WCB with bolted bonnet construction
Disc: 316 stainless steel with hard-faced seating surface
Seat: Integral stellited renewable
Stem: 316 stainless steel with guided design
Actuator: Pneumatic diaphragm spring-return
Bonnet: Carbon steel with lantern ring packing
Connection Type
Threaded NPT, Socket Weld, Flanged RF (ANSI B16.5)
Looking for more details?
View complete technical specifications in the Specifications tab, check out Features and Applications, or download product documentation from the Downloads tab.
$1,480.00
