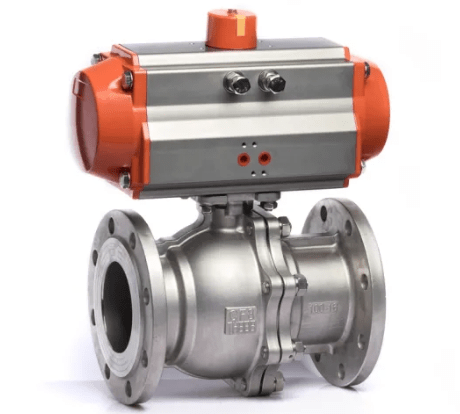

Pneumatic Actuated 2 Piece Flanged Ball Valve
| Body Material | |
| Class | |
| Actuation Type | |
| Size |
Pneumatic Actuated 2 Piece Flanged Ball Valve
Body: Carbon Steel, CF8M
Ball: SS304, SS316
Shaft: A182 F6, F304, F316
Seat: PTFE, RPTFE
Bolt: SS304, SS316
Nut: SS304, SS316
Operation: Lever Operated, Gear Operated, Pneumatic Actuated, Electric Actuated

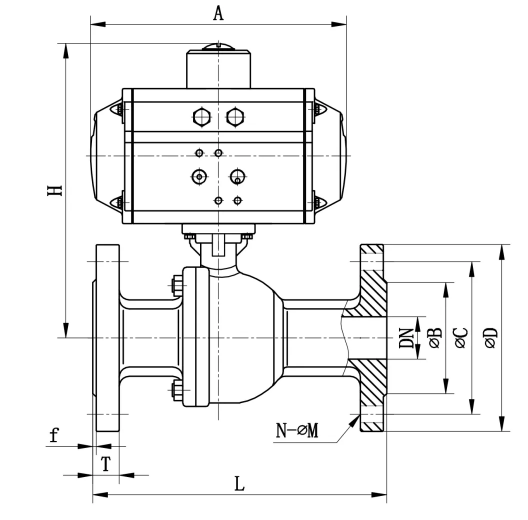

Dimensions? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Unit: mm
| Size | L | T | f | D | C | B | A | H | N – M |
| DN15 | 130 | 14 | 2 | 95 | 65 | 45 | 163 | 164 | 4-?14 |
| DN20 | 140 | 15 | 2 | 105 | 75 | 54 | 163 | 170 | 4-?14 |
| DN25 | 150 | 16 | 2 | 115 | 85 | 65 | 163 | 175 | 4-?14 |
| DN32 | 165 | 16 | 2 | 135 | 100 | 78 | 163 | 184 | 8-?18 |
| DN40 | 180 | 17 | 2 | 145 | 110 | 85 | 214 | 214 | 8-?18 |
| DN50 | 200 | 18 | 2 | 160 | 125 | 100 | 252 | 225 | 8-?18 |
| DN65 | 220 | 18 | 2 | 180 | 145 | 120 | 252 | 253 | 8-?18 |
| DN80 | 250 | 18 | 2 | 195 | 160 | 135 | 316 | 296 | 8-?18 |
| DN100 | 280 | 20 | 2 | 215 | 180 | 155 | 354 | 322 | 8-?18 |
| DN125 | 320 | 22 | 3 | 245 | 210 | 185 | 418 | 408 | 8-?18 |
| DN150 | 360 | 24 | 3 | 280 | 240 | 265 | 450 | 465 | 8-?22 |
| DN200 | 400 | 26 | 3 | 335 | 295 | 265 | 530 | 552 | 12-?22 |
