Pneumatic Flow Control Valve
| No attributes available |
Pneumatic Flow Control Valve
Body: WCB, SS304, SS316, CF8, CF8M, WCC
Bonnet: Carbon Steel, Stainless Steel
Stem: Stainless Steel
Packing: PTFE
Plug: Carbon Steel, Stainless Steel
Nominal Diameter: DN20 to DN200
Nominal Pressure: PN16 to PN64, Class150 to Class2500
Actuation Type: Double Acting, Spring Return
End Connection: Flanged, Buttweld, Socketweld

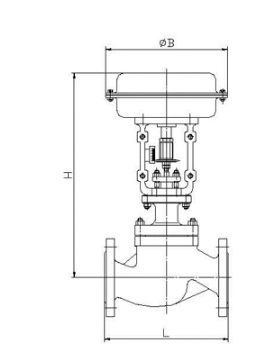

Dimension
PN16 Unit: mm
| DN | L | H | ФB |
| 20 | 184 | 394 | 245 |
| 25 | 184 | 396 | 245 |
| 32 | 200 | 402 | 245 |
| 40 | 222 | 437 | 290 |
| 50 | 254 | 451 | 290 |
| 65 | 276 | 607 | 362 |
| 80 | 298 | 613 | 362 |
| 100 | 352 | 631 | 362 |
| 125 | 410 | 736 | 454 |
| 150 | 451 | 778 | 454 |
| 200 | 543 | 796 | 454 |
