Titanium Floating Ball Valve
| Body Material | |
| Class | |
| Connection Type | |
| Size |

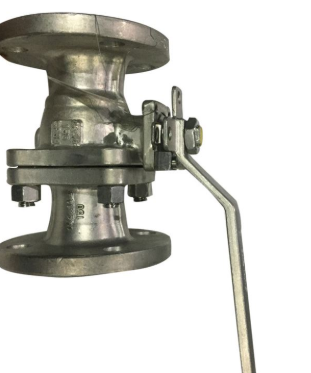

Titanium Floating Ball Valve
Body: Titanium Grade 2, Titanium Grade 5, CF8, CF8M, Cast Iron, Carbon Steel
Ball: Titanium Grade 2, Titanium Grade 5, CF8, CF8M, Cast Iron, Carbon Steel
Stem: SS304, SS316
Gland Nut: SS304, SS316
Seat: PTFE, RTFE, PPL
Seal: PTFE
Packing: PTFE, Graphite
Nominal Size: 2? to 8?
Nominal Pressure: Class 150 to Class 600, PN16 to PN63
End Connection: Flanged
Handle: Lever Handle, Locking Device Handle
Operation: Manual, Pneumatic, Electric Actuated
Design and Manufacture Standard: ASME B16.34, API 6D
Face to Face Dimension: DIN3202, EN1266, ANSI B16.10
Flanged End Dimension: ANSI B16.5
Buttweld Dimension: ANSI B16.25
Inspection and Testing: API 598

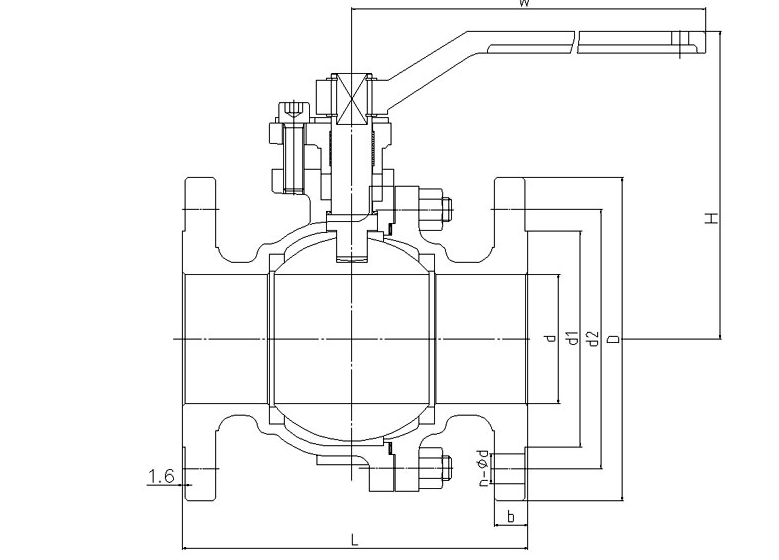

Dimensions
| NPS | in | 2 | 2 1/2 | 3 | 4 | 5 | 6 | 8 |
| d | mm | 51 | 64 | 76 | 102 | 127 | 152 | 203 |
| L(RF) | mm | 216 | 241 | 283 | 305 | 381 | 403 | 502 |
| d1 | mm | 92 | 105 | 127 | 157 | 186 | 216 | 270 |
| d2 | mm | 127 | 149 | 168.5 | 200 | 235 | 270 | 330 |
| D | mm | 165 | 190 | 210 | 254 | 279 | 318 | 381 |
| b | mm | 23 | 26 | 29 | 32 | 35 | 37 | 42 |
| n-?d | mm | 8-19 | 8-22 | 8-22 | 8-22 | 8-22 | 12-22 | 12-25 |
| H | mm | 140 | 160 | 180 | 208 | 220 | 290 | 300 |
| W | mm | 200 | 290 | 290 | 360 | 600 | 800 | 1000 |
